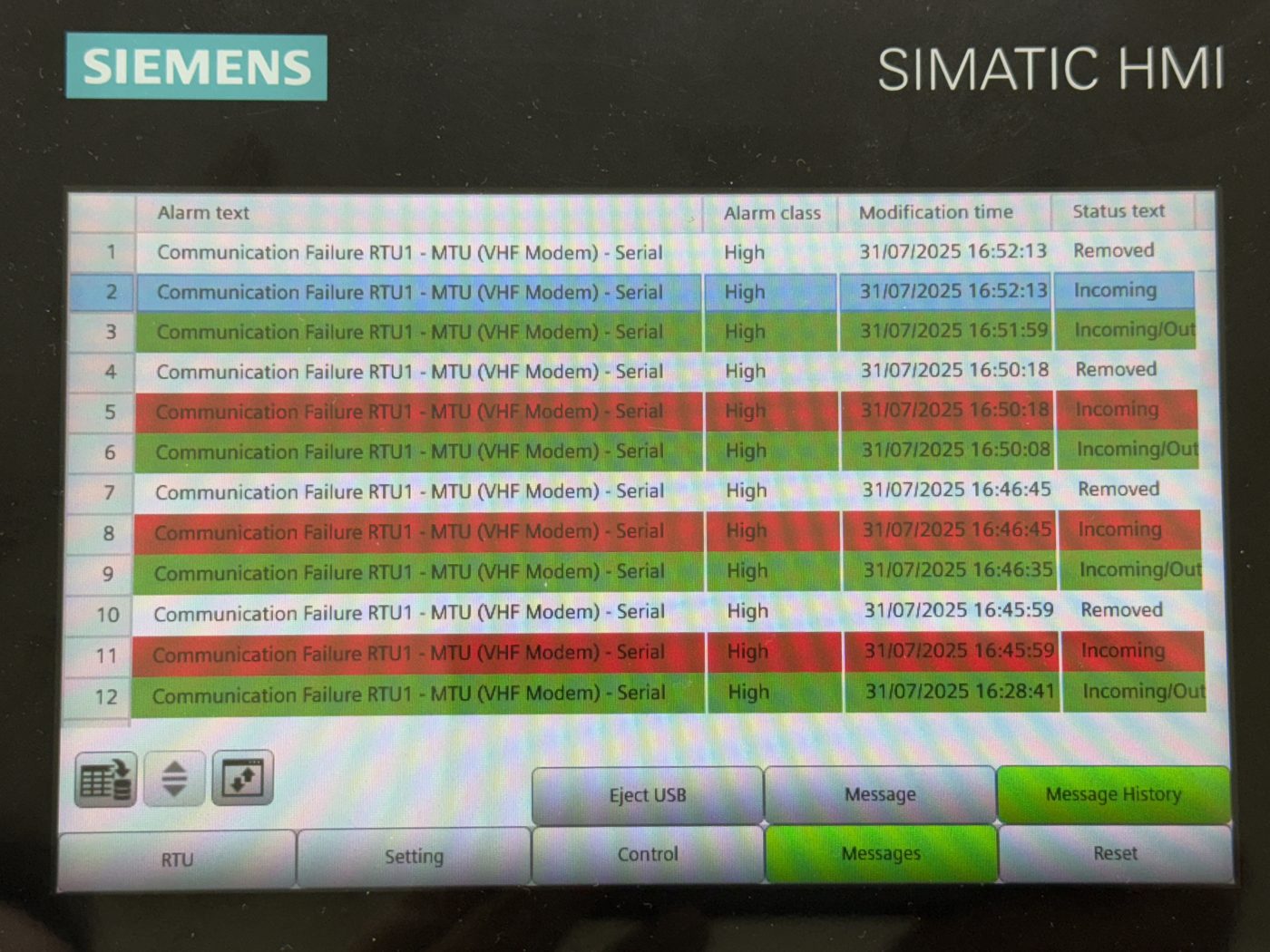

Unified Comfort Panel — from our stock
|
SIMATIC WinCC Unified
The SIMATIC WinCC Unified system is Siemens' next-generation HMI and SCADA platform, offering a scalable portfolio from compact touch panels to full plant-wide PC-based visualisation. All products in the Unified family run the same WinCC Unified runtime, which means a single engineering environment in TIA Portal, consistent operation across all device classes, and seamless scalability as your application grows.
Centech Industries supplies the full SIMATIC WinCC Unified range in Singapore — from affordable Basic Panels for simple machines to Comfort Panels for complex processes, and WinCC Unified PC for plant-level SCADA. |
1. WinCC Unified Basic Panel
|
The SIMATIC HMI Unified Basic Panel (MTP series) is designed for cost-effective visualisation on small machines. Available in four display sizes from 4″ to 12″, all variants deliver identical performance and interfaces, running the full WinCC Unified runtime.
Available sizes: MTP400 (4.3″), MTP700 (7″), MTP1000 (10″), MTP1200 (12.1″) Display: TFT colour touch, up to 1280×800 resolution Connectivity: 1× PROFINET / Ethernet, 2× USB Engineering: TIA Portal with WinCC Unified Basic Typical use: Single machines, OEM equipment, entry-level automation ✅ Cost-efficient | ✅ Same runtime as Comfort Panel | ✅ Easy scale-up path |

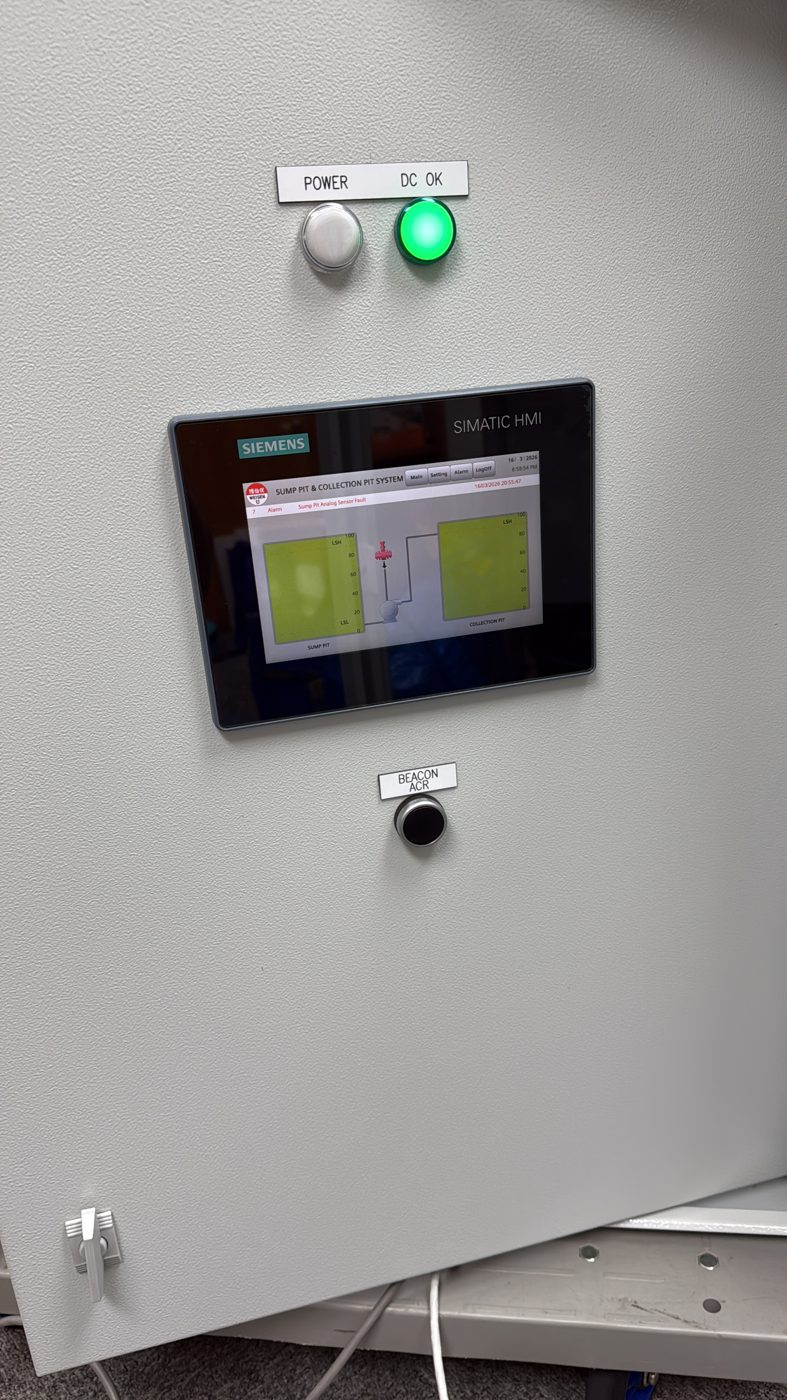

SIMATIC HMI Unified Basic Panel (MTP series) — from our stock

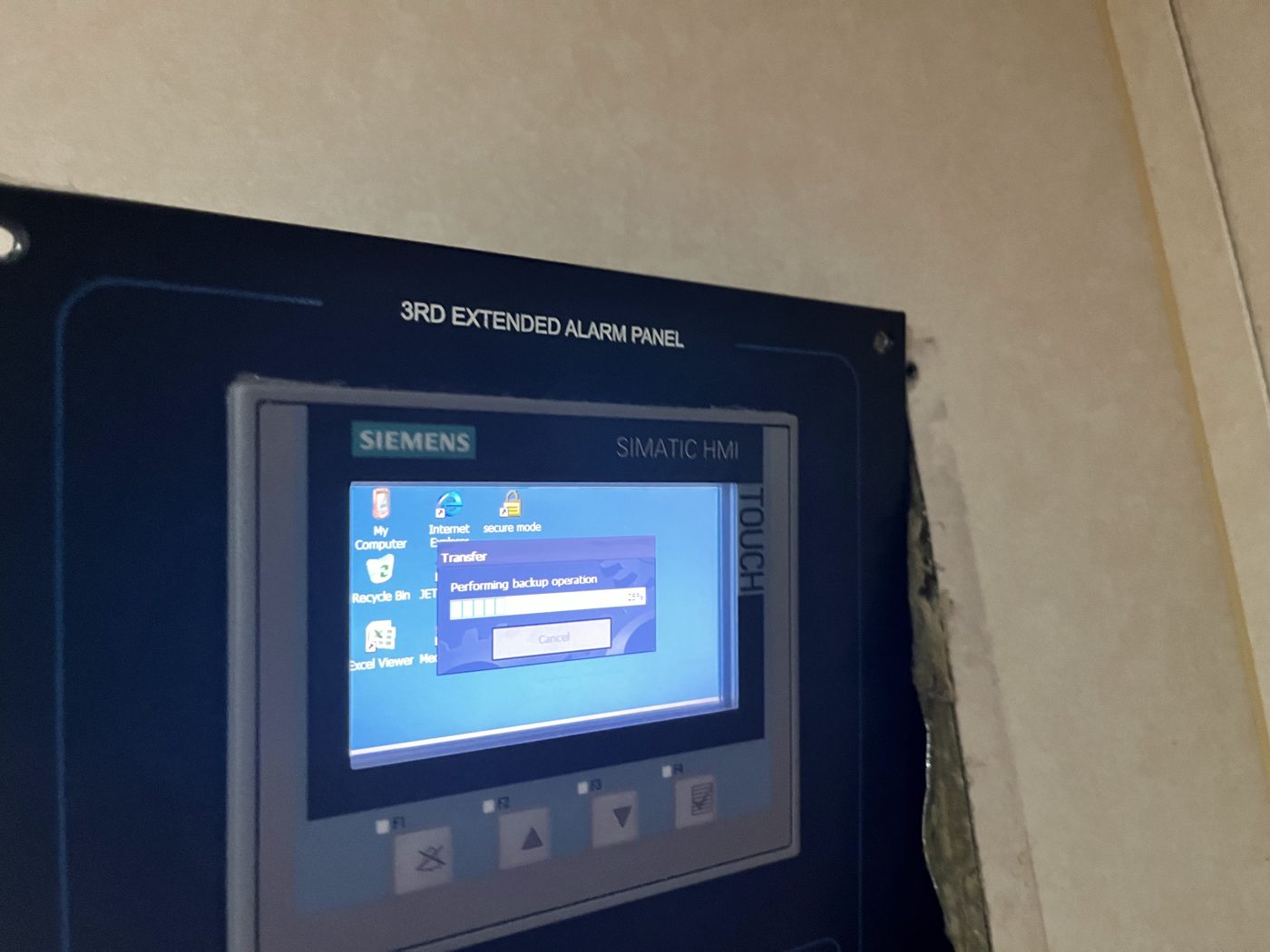

HMI program transfer in action — our commissioning work
|
2. WinCC Unified Comfort Panel

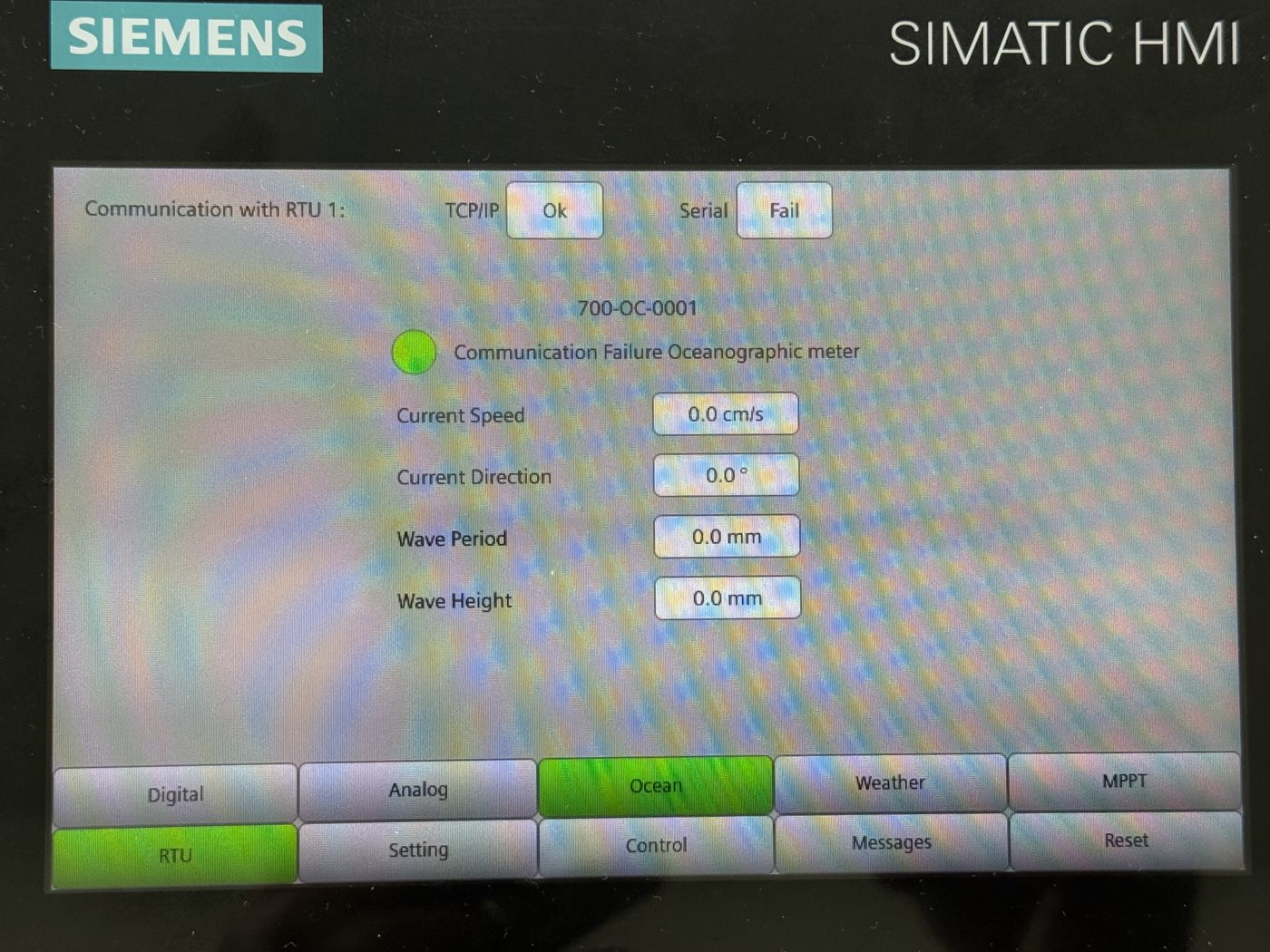

SIMATIC HMI Unified Comfort Panel — from our stock

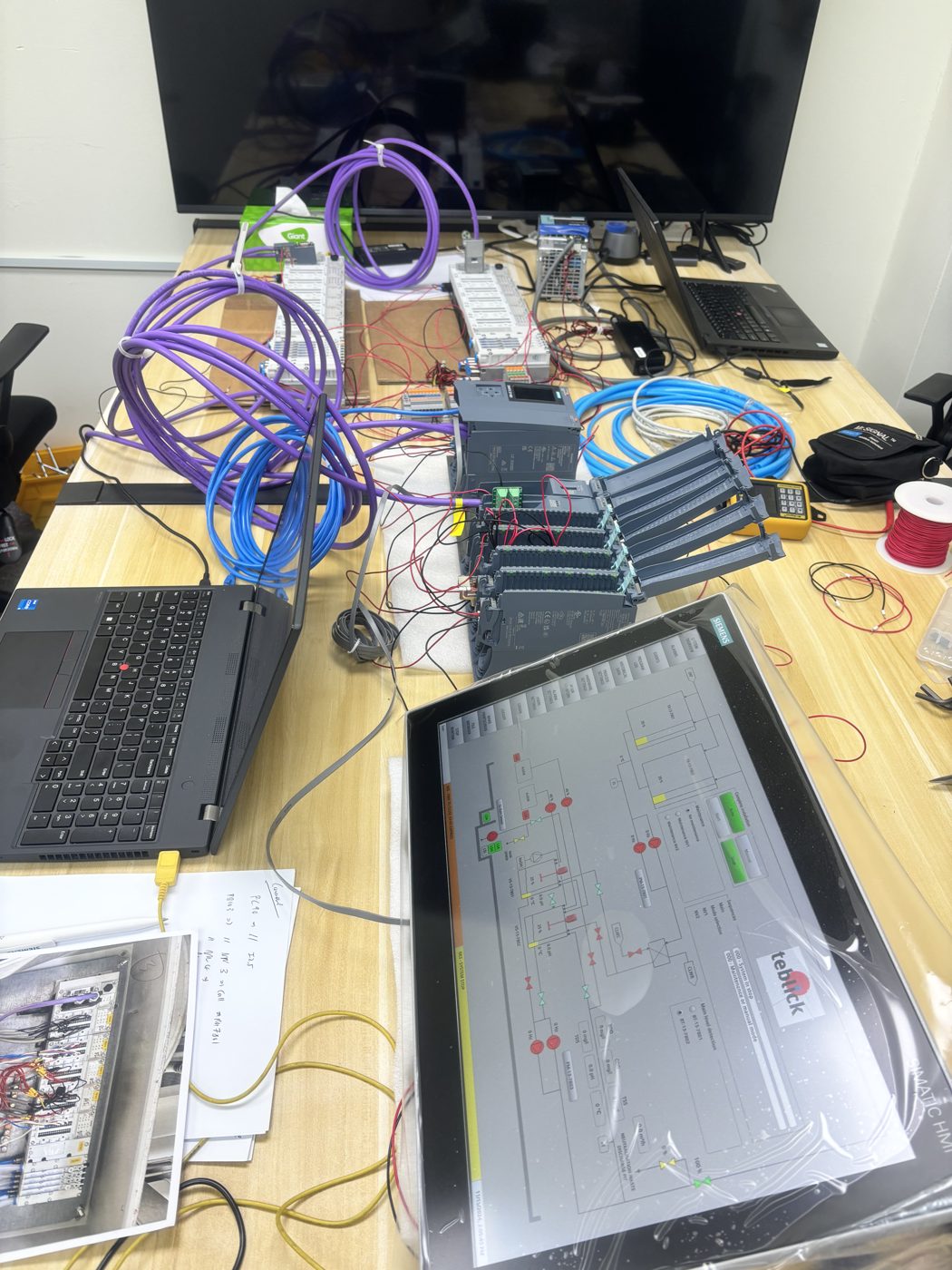

Unified Comfort Panel during FAT — our workshop
|
The SIMATIC HMI Unified Comfort Panel is the high-end panel for demanding machine and process visualisation. With display sizes from 7″ to 22″ and outstanding usability, the Unified Comfort Panel delivers the full power of the WinCC Unified platform — including advanced trends, alarms, recipes, and remote web access.
Available sizes: MTP700, MTP1000, MTP1200, MTP1500, MTP1900, MTP2200 Display: High-brightness TFT touch (widescreen), up to 1920×1080 on 22″ Connectivity: 2× PROFINET/Ethernet, USB, SD card, optional PROFIBUS Remote access: 1 operate client + 3 monitor clients via web browser Engineering: TIA Portal with WinCC Unified Comfort Typical use: Complex machines, process lines, food & beverage, pharmaceutical ✅ Advanced alarms & trends | ✅ Web client remote access | ✅ Long spare-parts availability |
3. WinCC Unified PC
|
SIMATIC WinCC Unified PC is the PC-based SCADA solution of the WinCC Unified family. It runs on SIMATIC Industrial PCs or standard server hardware, offering virtually unlimited scalability for plant-wide visualisation and data management.
Key features: • Unlimited data points and tags • SQL-based long-term data archiving • Redundant server configuration for high availability • Unlimited web clients for remote monitoring and operation • Open OPC UA and GraphQL interfaces for IT/OT integration • Same TIA Portal engineering as Unified Panels Typical use: Supervisory control, plant SCADA, multi-line monitoring, data historian ✅ Plant-wide SCADA | ✅ Unlimited clients | ✅ IT/OT integration via OPC UA |

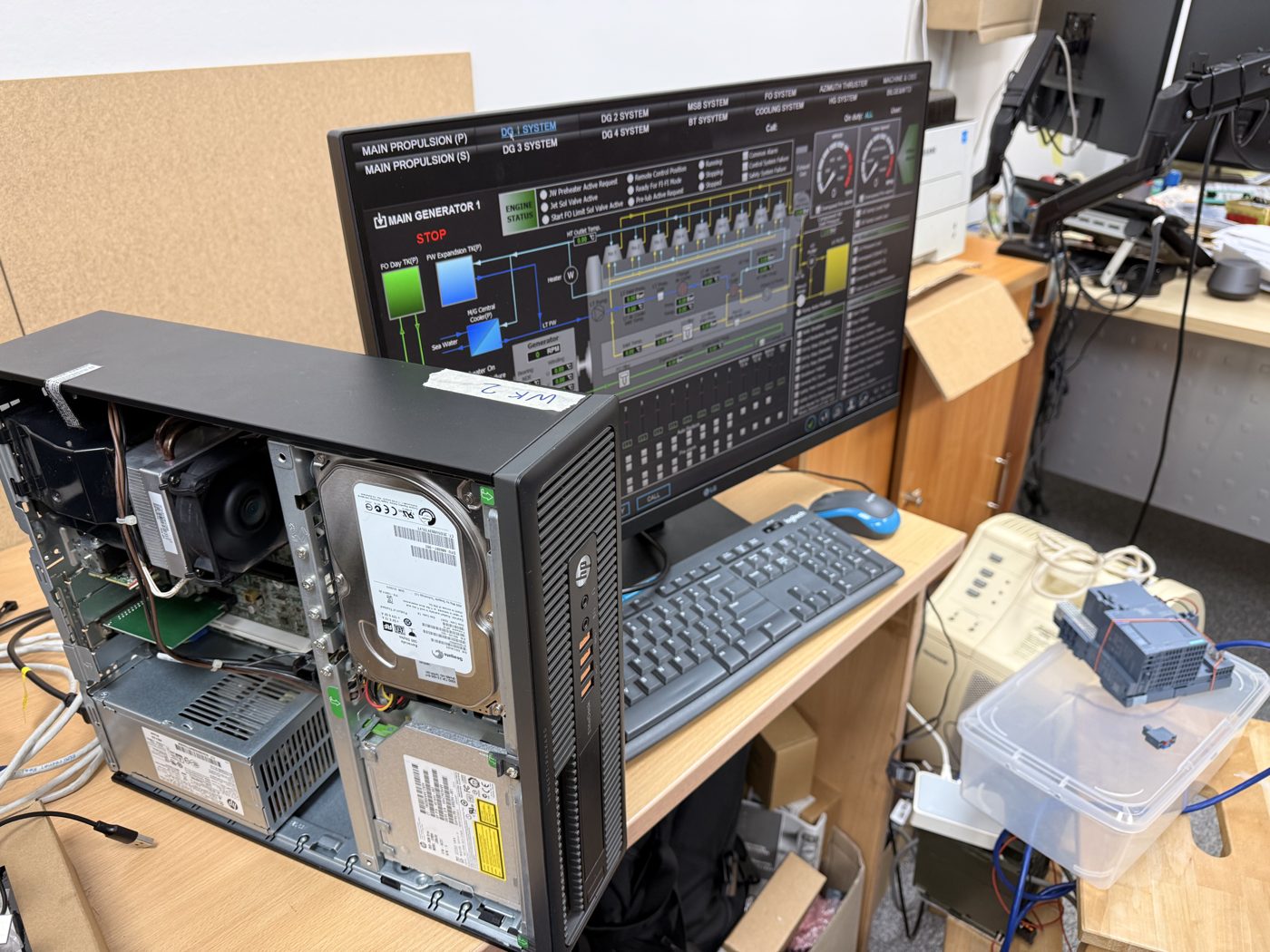

WinCC PC system check — our service work

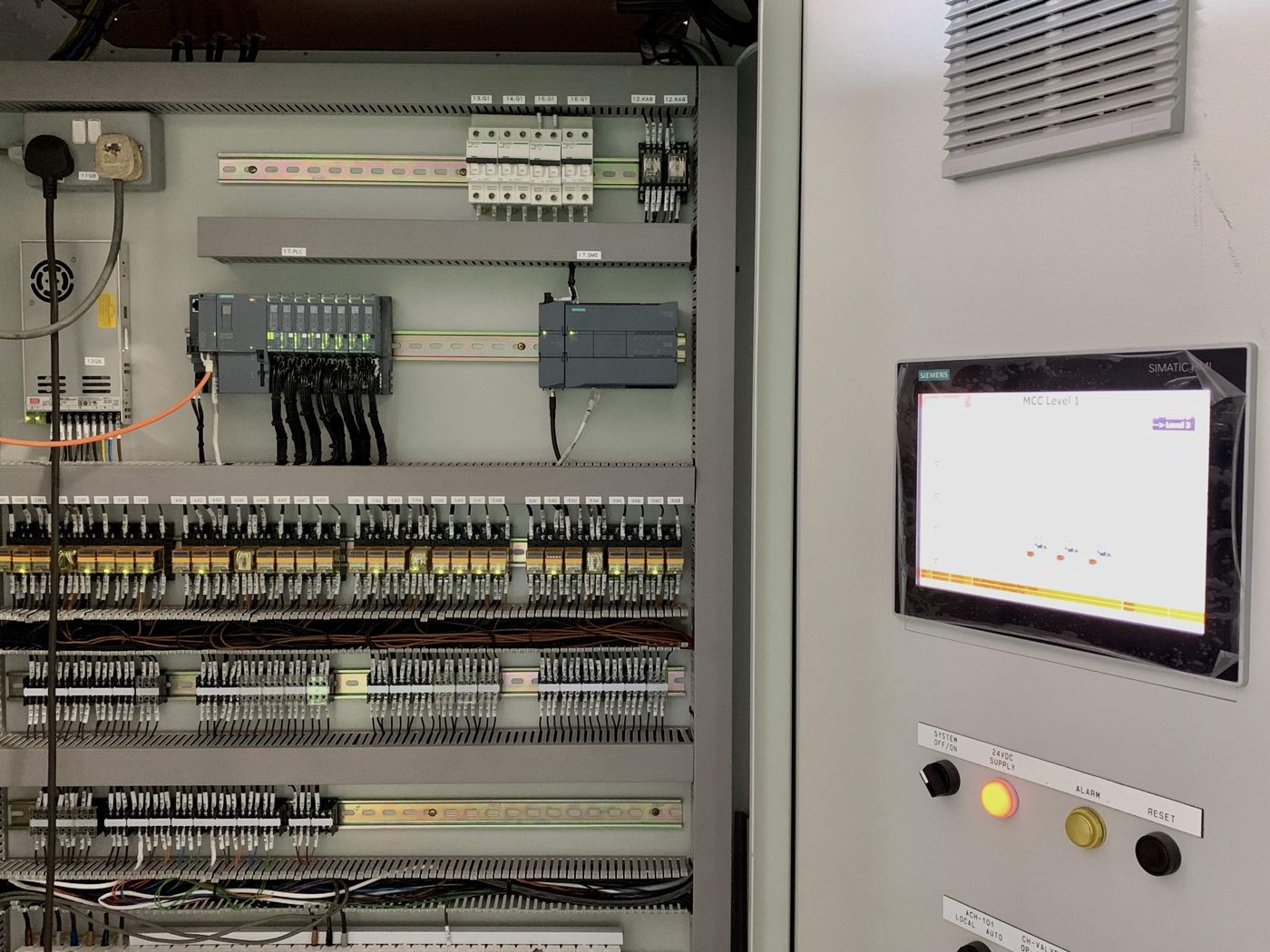

Siemens Industrial Touch PC with ET200SP — our project work
|
