SIMATIC PCS 7

Siemens SIMATIC PCS 7 is a fully integrated Distributed Control System (DCS) designed for continuous and batch process industries. Built on the SIMATIC platform, PCS 7 combines the reliability of S7-400 / CPU 410-5H controllers with powerful SCADA capabilities via WinCC, enabling centralised process visualisation, control, and data management.

PCS 7 is engineered for high availability and fault tolerance — critical for plants where unplanned downtime has significant operational or safety consequences. It supports redundant controller configurations, redundant communication networks, and redundant I/O via ET200SP HA.

Centech Industries has hands-on experience with PCS 7 systems, including CPU 410-5H configuration, ET200SP HA integration, PROFIBUS/PROFINET network setup, and on-site commissioning and support.

---

CPU 410-5H — The Process Controller

The SIMATIC CPU 410-5H is the central process controller in PCS 7, designed specifically for high-availability and safety-integrated process automation. It supports:

• Redundant CPU operation — hot-standby with bumpless switchover
• Integrated safety (F-capability) — SIL 3 rated fail-safe control
• High processing capacity for large-scale process applications
• PROFIBUS DP and PROFINET IO connectivity
• Scalable for small skid systems through to large plant-wide DCS architectures

The CPU 410-5H operates within the Automation Station (AS) in PCS 7, communicating with the Operator Station (OS) via the Plant Bus (Industrial Ethernet).

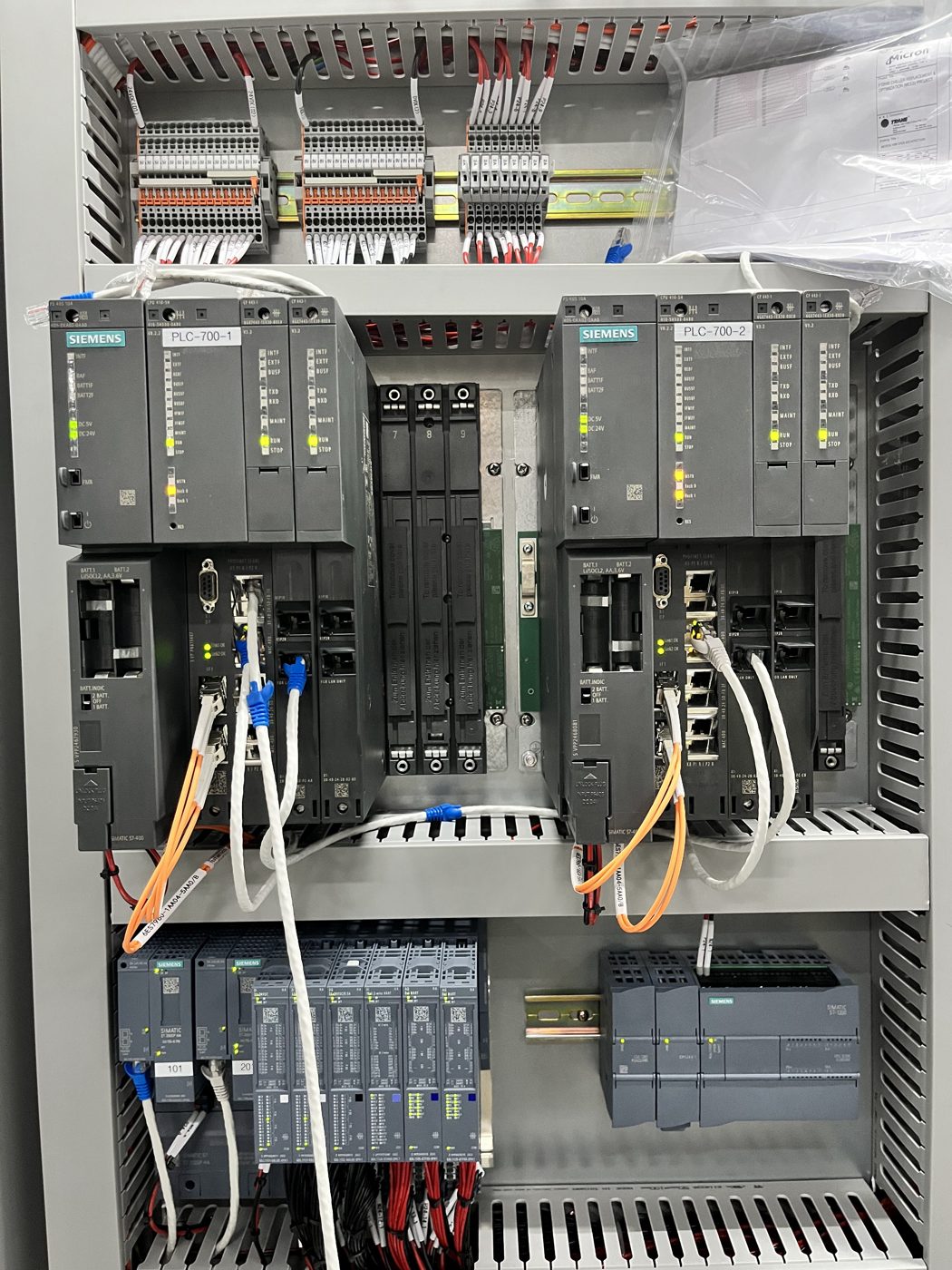

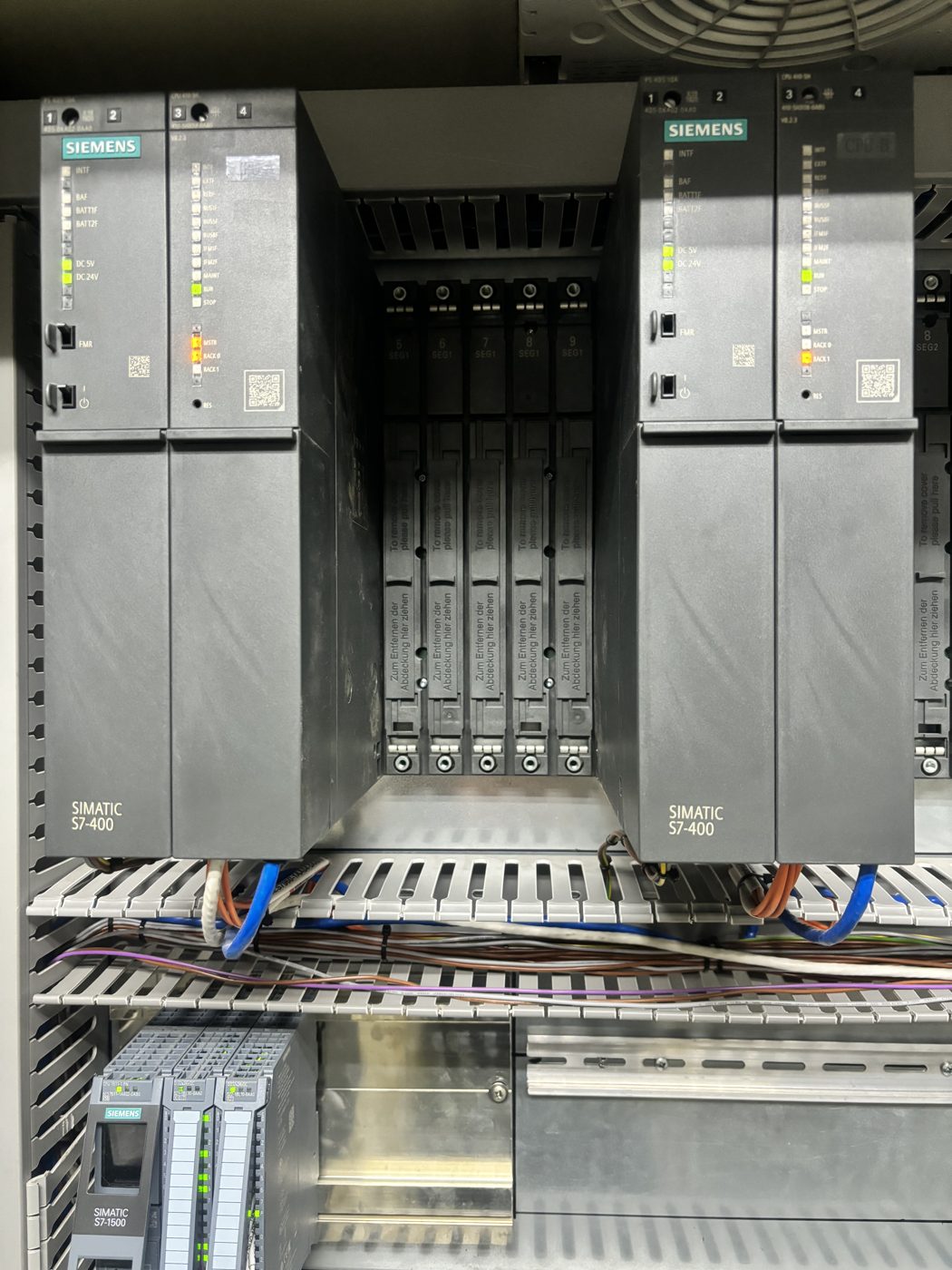

SIMATIC CPU 410-5H process controller

---

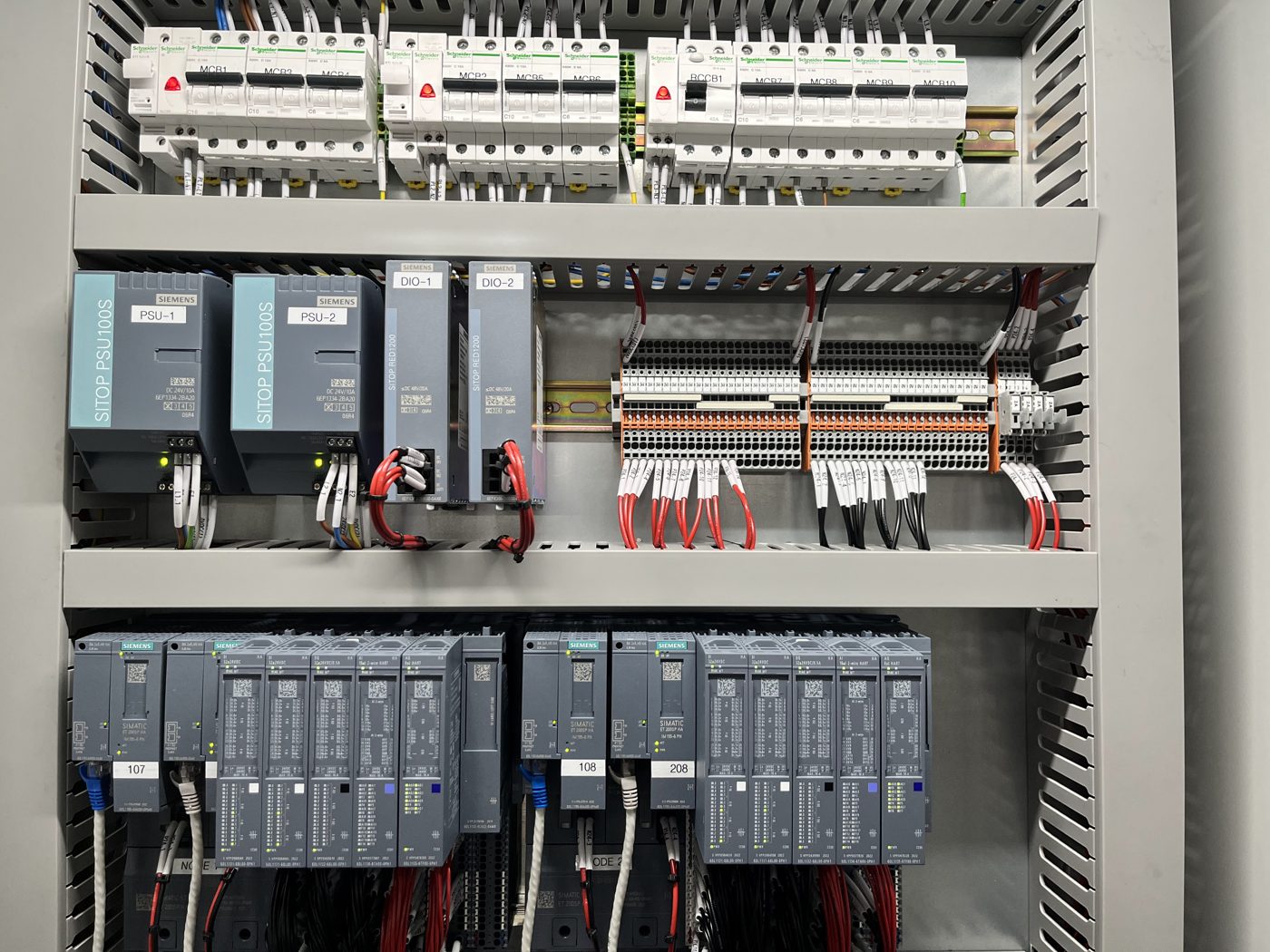

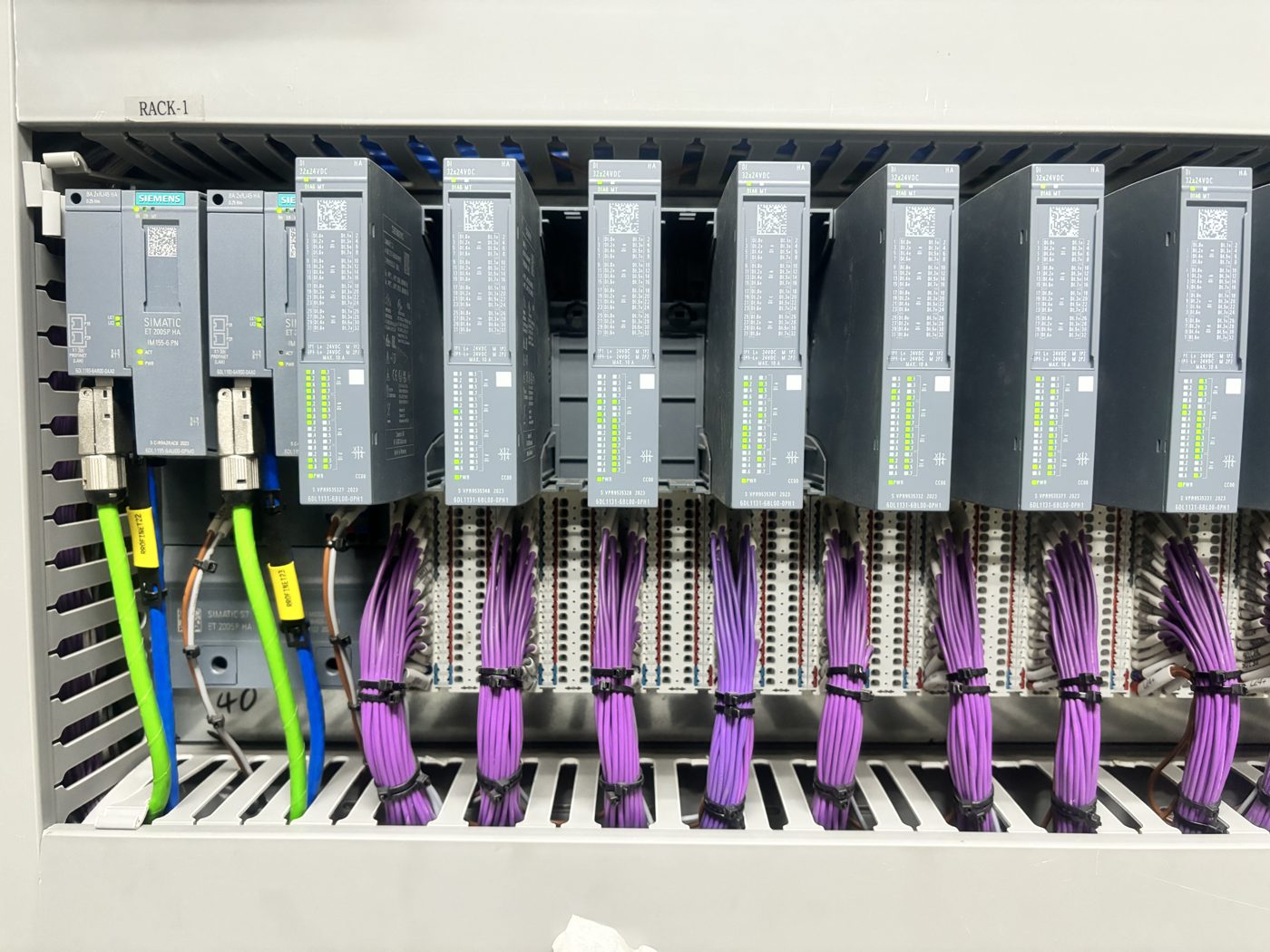

ET200SP HA high-availability remote I/O

ET200SP HA — High-Availability Remote I/O

The SIMATIC ET200SP HA (High Availability) is a redundant remote I/O system purpose-built for process automation and PCS 7 environments. Key capabilities:

• Redundant PROFINET IO — dual communication paths with automatic failover
• Hot-swappable I/O modules — replace under live process conditions without shutdown
• Channel-level redundancy on selected analogue and digital I/O modules
• Wide signal module range — AI, AO, DI, DO, temperature, HART
• Compact DIN-rail design suitable for process plant cabinets

ET200SP HA is the preferred field I/O solution in modern PCS 7 and SIMATIC S7-1500H redundancy architectures, offering flexibility to expand I/O without process interruption.

---

Our PCS 7 & ET200SP HA Project Work

Hands-on experience from actual site and workshop projects handled by Centech engineers.

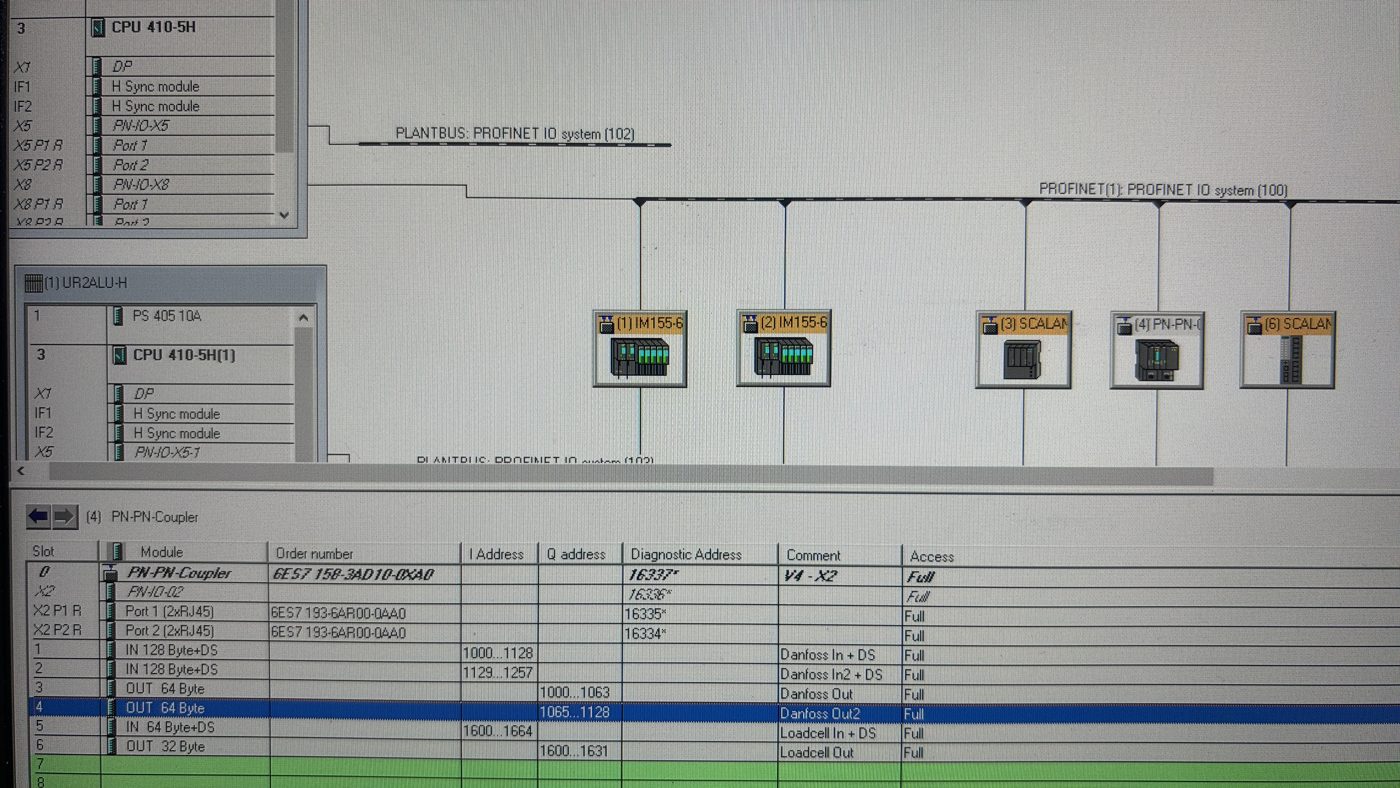

PCS 7 configuration in progress

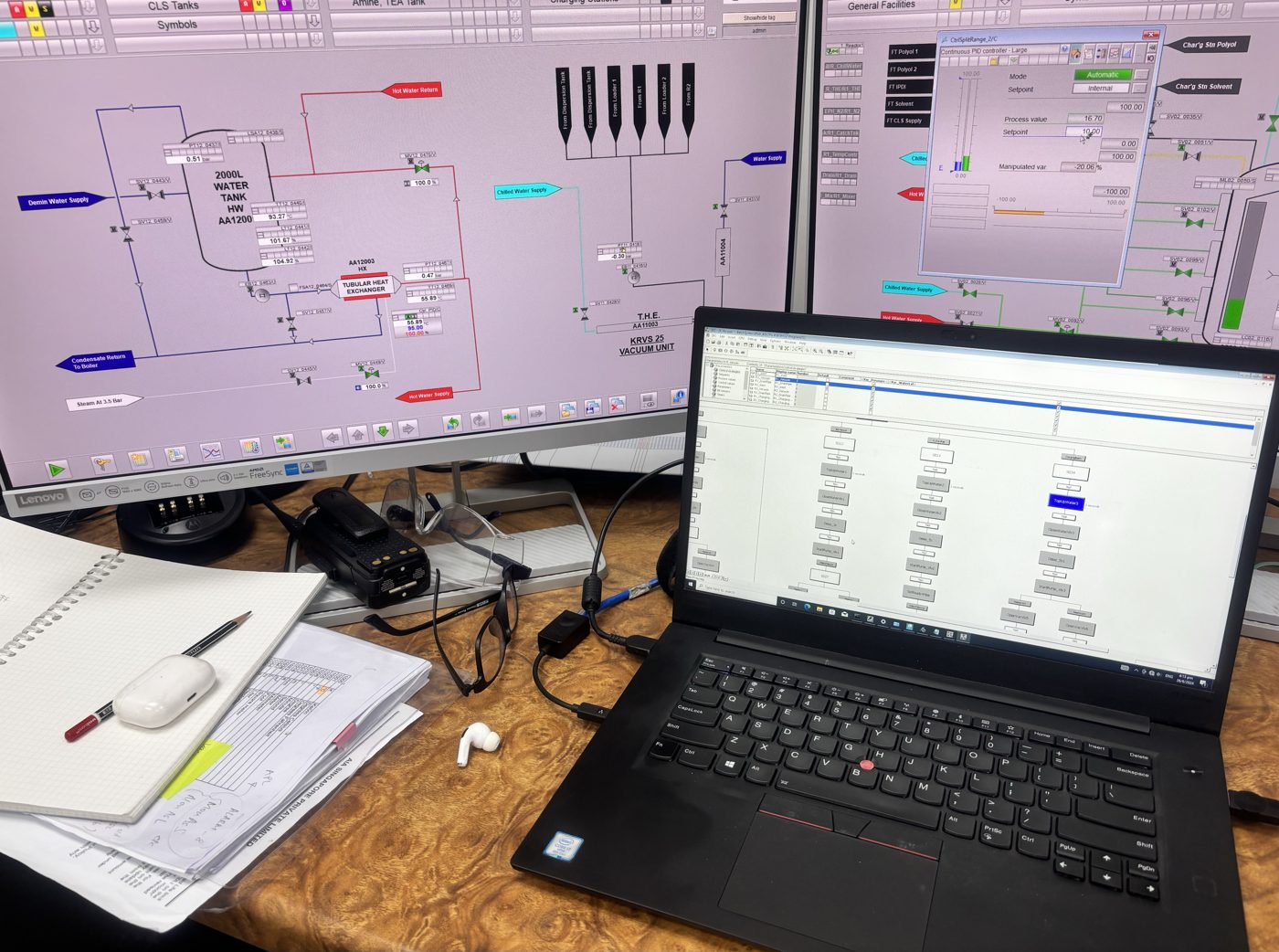

PCS 7 engineering & programming

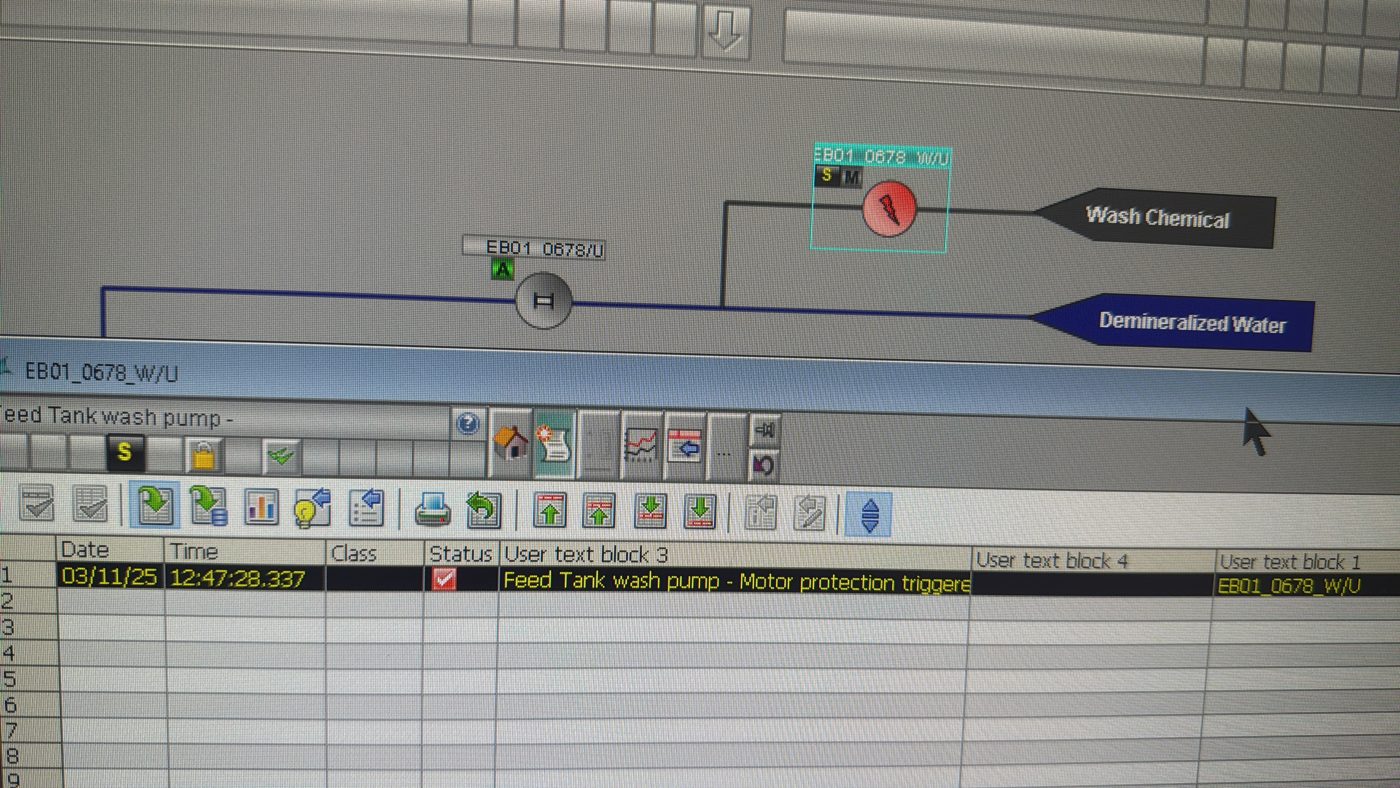

On-site PCS 7 support

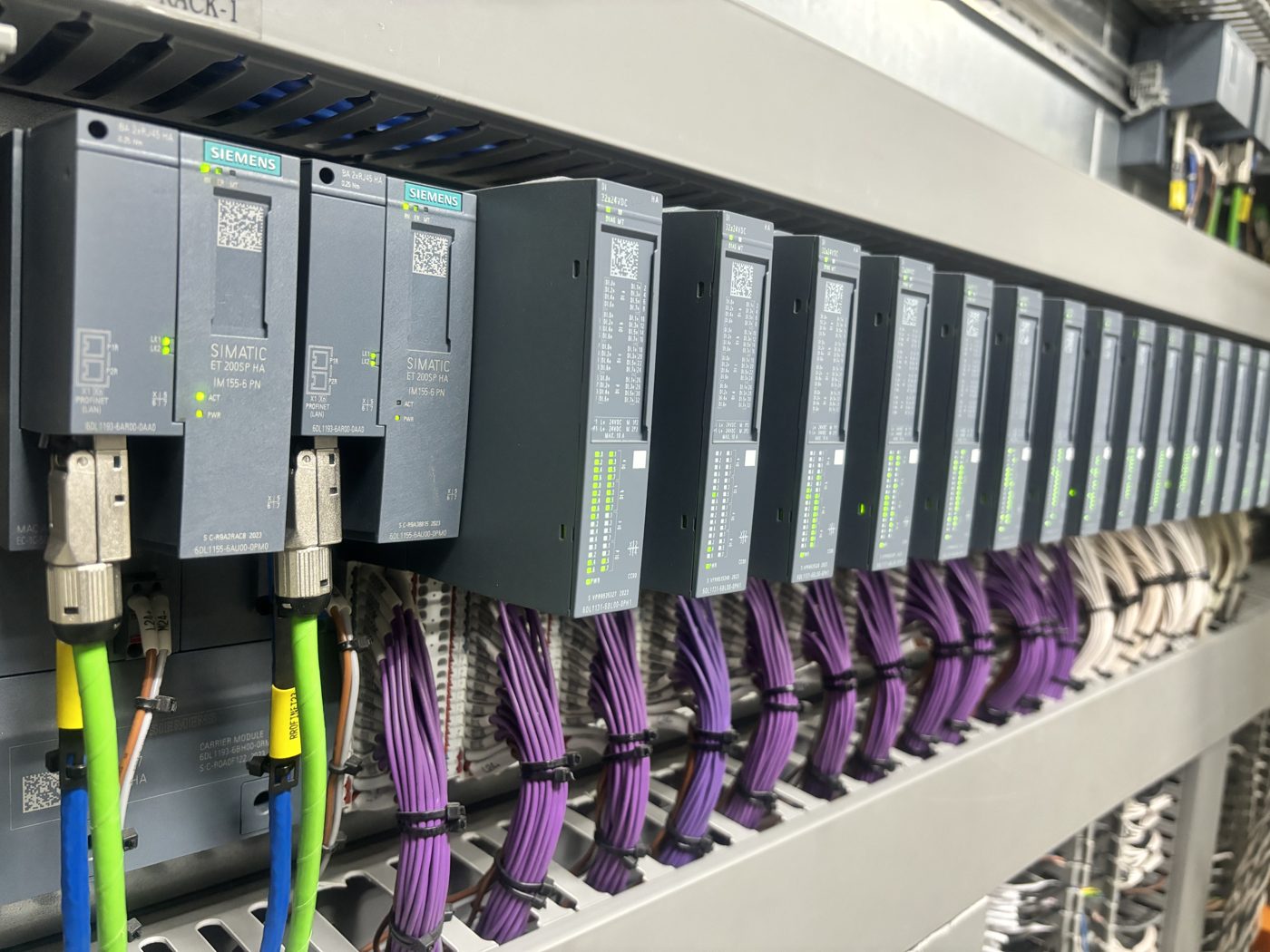

ET200SP HA station commissioning

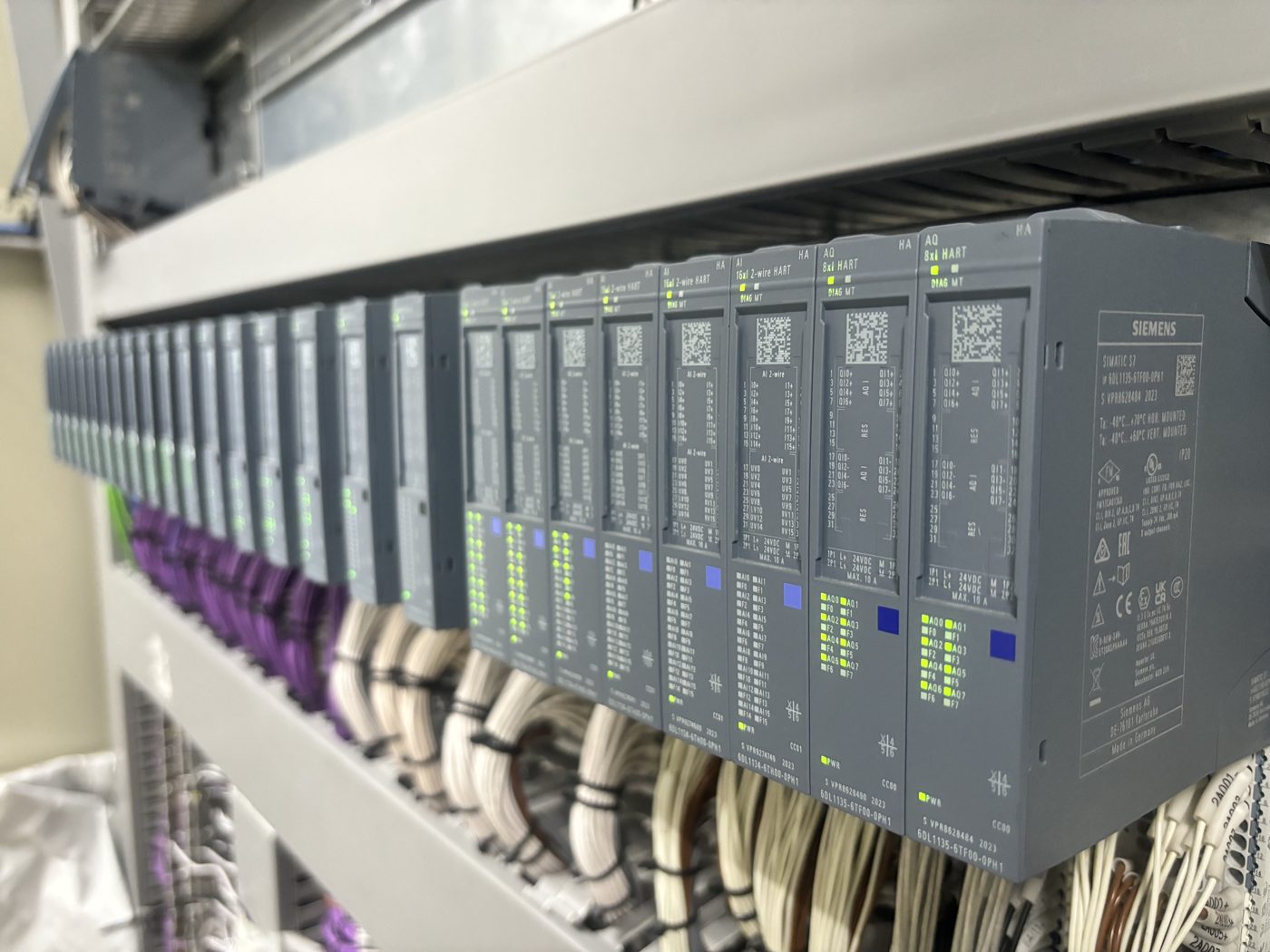

ET200SP HA I/O rack

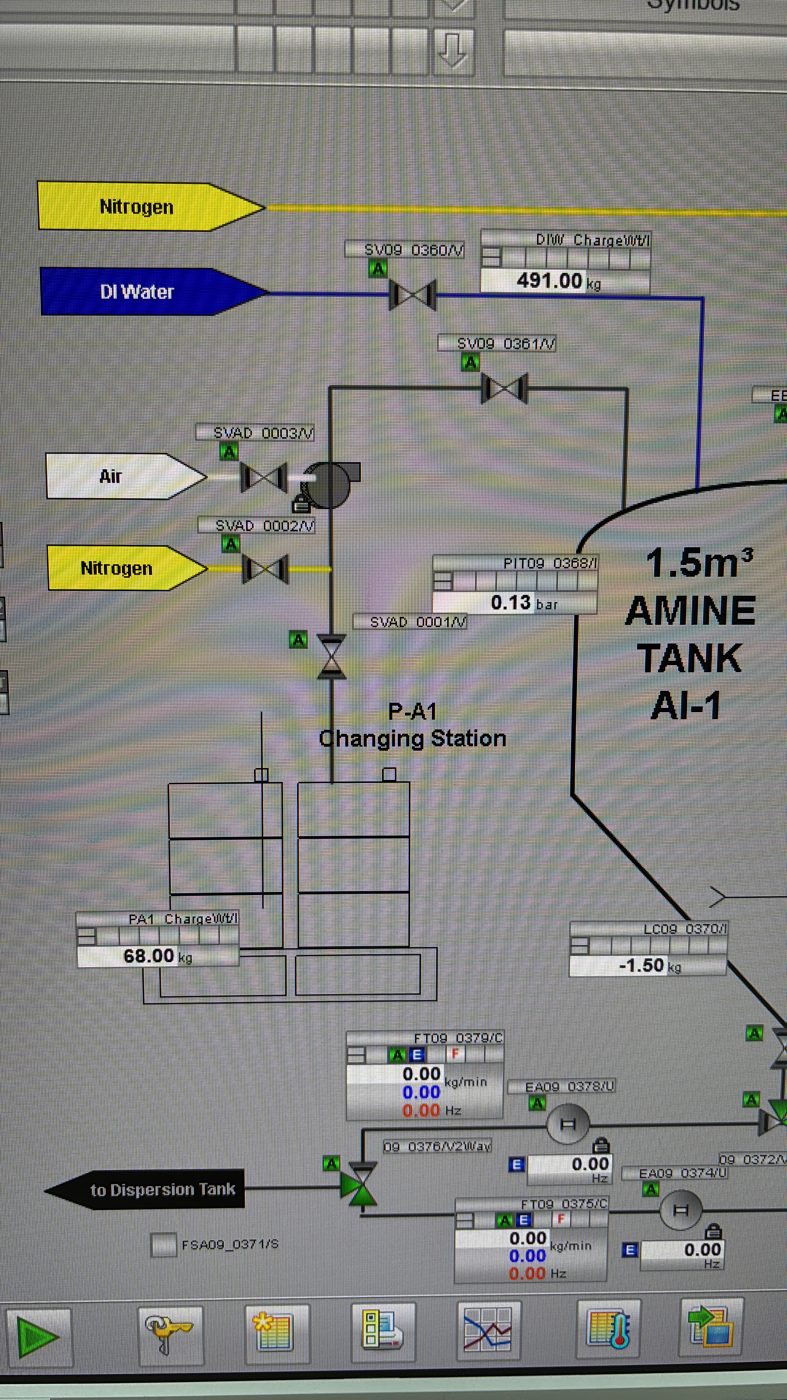

PCS 7 system support & troubleshooting

---

How Centech Can Help

Whether you need parts supply, technical support, or project assistance for your PCS 7 or ET200SP HA system, Centech Industries can help. Our engineers have direct hands-on experience with:

• PCS 7 hardware sourcing — CPU 410-5H, ET200SP HA modules, PROFIBUS/PROFINET components
• On-site fault diagnosis and troubleshooting
• ET200SP HA module replacement and hot-swap procedures
• PCS 7 engineering station (ES) and operator station (OS) support
• PROFIBUS DP and PROFINET IO network diagnostics
• Migration assessment from legacy S7-400H / PCS 7 to newer architectures

Contact us to discuss your PCS 7 or ET200SP HA requirements.
