SIMATIC HMI

---

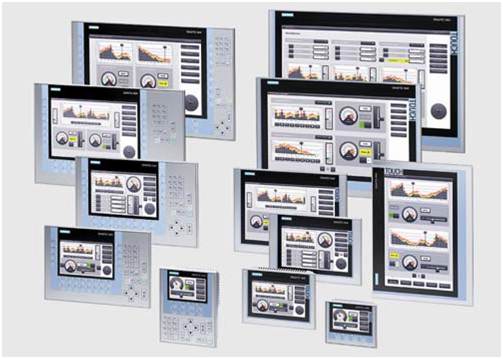

Comfort Panels

Comfort Panels offer high-end functionality for demanding applications. They offer high-resolution widescreen displays in sizes from 4" to 22", alternatively for touch screen operation (TP) or key operation (KP).

The Comfort Panels are equipped with integrated PROFINET/Ethernet as well as PROFIBUS DP/MPI interfaces within one single panel

View All

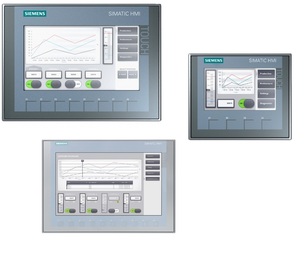

Basic Panels (2nd generation)

The 2nd generation Basic Panels offer basic HMI functionality for small machines and applications. The device family offers panels with 4", 7", 9" and 12" high-resolution widescreen displays, as well as combined key and touch operation.

It either comes with PROFINET/Ethernet or PROFIBUS DP/MPI.

View All

Key Panels

The Multi Panels are used in the most diverse industries and applications and can be expanded in their applications with the Multi Panel options.

Despite the fact that Multi Panel had been declared phase out, the demand is still out there due to their wide industry application, and is not easily replaceable when the source code is not available.

---

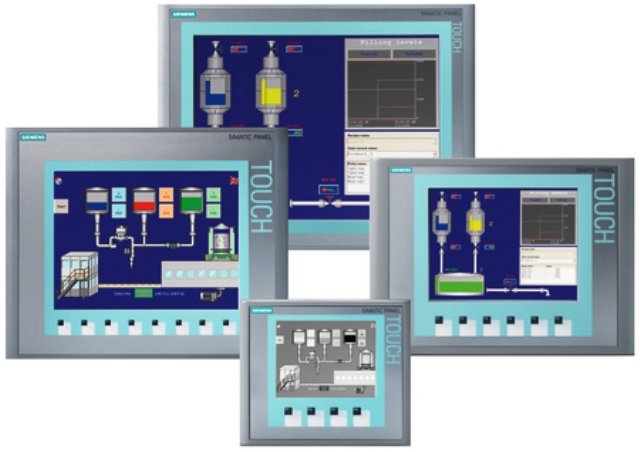

Basic Panels (1st generation)

Ideal entry-level series of HMI from 3" to 15" for operator control and monitoring compact machines and systems.

It either comes with PROFINET/Ethernet or PROFIBUS DP/MPI.

VIEW ALL

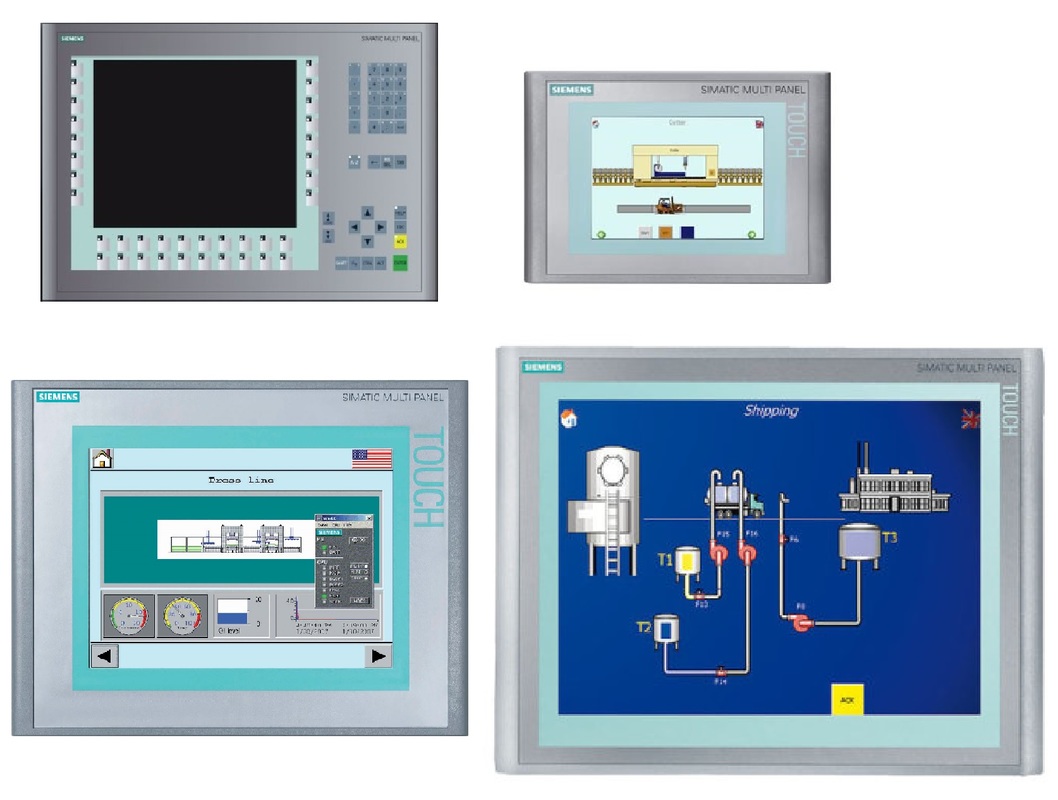

Multi Panels

The Multi Panels are used in the most diverse industries and applications and can be expanded in their applications with the Multi Panel options.

Despite the fact that Multi Panel had been declared phase out, the demand is still out there due to their wide industry application, and is not easily replaceable when the source code is not available.

Mobile Panels

If mobility is required for the on-site control and monitoring of machines and plants, SIMATIC mobile panels offer some crucial advantages.

Even for larger production facilities, complex or enclosed machines, long materials handling or production lines and conveyor systems, mobile operator panels allow fast and precise setting up and positioning during commissioning. They also ensure shorter downtimes during retooling, maintenance or repairs.
